In vitro antimalarial activity evaluation of two ethnomedicinal plants against chloroquine sensitive and resistant strains of Plasmodium falciparum

Abstract

Background

In this study, we selected two medicinal plants Citrus maxima (Burm.) Merr. and Artemisia nilagirica (C.B. Clarke) Pamp. on the basis of their traditional use in the treatment of fever associated with malaria in Assam (India) and evaluated their antimalarial potential against Plasmodium falciparum strains.

Methods

The properly processed plant parts of C. maxima (Burm.) Merr. and A. nilagirica (C.B. Clarke) Pamp. were extracted with different solvents from nonpolar to polar by cold maceration technique. After that antimalarial activities of the extracts were evaluated against both chloroquine sensitive (3D7) and resistant (RKL-9) strains of P. falciparum using Giemsa staining light microscopy technique. The most active extract(s) was further screened for cytotoxicity potential against murine macrophage RAW264.7 cell line using MTT assay. Then preliminary phytochemical screening and qualitative fingerprint analysis of the active extract(s) were done to check the presence of different secondary metabolites.

Results

From the in vitro study, the hydro-alcoholic extract of C. maxima (Burm.) Merr. and methanol extract of A. nilagirica (C.B. Clarke) Pamp. were found to be the most active against both 3D7 and RKL-9 strains. In the cytotoxicity study, the CC₅₀ values of the active extracts were found to be > 100 μg/ml, which suggested the safety of the extracts. Then phytochemical and fingerprint analysis revealed the presence of various important plant secondary metabolites in both the extracts.

Conclusion

The findings of this study confirmed the presence of antimalarial potential of hydro-alcoholic extract of C. maxima (Burm.) Merr. and methanol extract of A. nilagirica (C.B. Clarke) Pamp without having any toxic effect. Both the extracts showed IC₅₀ values below 5 μg/ml against 3D7 and RKL-9 strains.

Background

Different approaches are adopted for the development of new drugs against malaria, where natural compound-based approach is one of the preferable one. It is to mention that several important drug candidates available in the market were originated from plant sources [1, 2]. The antimalarial drugs, quinine and artemisinin were also isolated from the plant sources based on the information of traditional use [3]. Later several potent semisynthetic and synthetic derivatives of quinine and artemisinin were developed, some of which are still in clinical use and some new derivatives are under developmental stages [4]. Scientists from different regions including India are still searching for the potent antimalarial compounds from various natural resources and have found some plants having antimalarial activity [5]. Being a part of Sub-Himalayan region, North East (NE) India is rich in plant diversity and various plants of this region have been using in traditional medicine by various ethnic groups of the region. In this study, we selected two ethnomedicinal plants, Citrus maxima (Burm.) Merr. and Artemisia nilagirica (C.B. Clarke) on the basis of their use in the preparation of antimalarial herbal remedy in Assam, a state of NE India. Citrus maxima (Burm.) Merr., commonly known as ‘Pumelo’ has diverse biological activities like antioxidants, antihyperglycemic/antidiabetic, hepatoprotective, anticancer, antimicrobial/antibacterial, antidepressant, antiaging, cholinesterase and tyrosine inhibition etc. [6,7,8,9,10,11,12,13,14]. Besides it was also reported that the leaves and fruit parts of C. maxima is also used in the treatment of malaria in Benin which is a highly malaria affected West African region [15]. From the fruit part of Citrus maxima (Burm.) Merr. our group already reported one compound luteolin as a potent antimalarial lead compound against P. falciparum using in silico and in vitro analysis [16]. On the other hand, A. nilagirca is reported to have several important biological activities like antioxidant, cytoprotective, anti-inflammatory, antiproliferative, antibacterial, anticancer etc. [17,18,19,20,21,22,23,24,25]. Apart, this plant also possesses larvicidal, pupicidal, adulticidal and mosquito repellant activity [26,27,28]. Besides Panda et al. evaluated the antimalarial potency of the different extracts of Artemisia nilagirica (C.B. Clarke) against an African strain (FCR-3) of P. falciparum using in vitro technique and found IC₅₀ value 5.76 ± 0.82 μg/ml of the methanol extract [29]. Based on the previous reports and their use in traditional medicine, it was hypothesized to have active phytoconstituent(s) against the resistant strains of malaria parasites. Hence, in this study, we investigated the antimalarial potency of different extracts of C. maxima and A. nilagirica against chloroquine sensitive (3D7) and chloroquine resistant (RKL-9) strains of P. falciparum.

Methods

Chemicals and reagents

The analytical reagent grade (EMPARTA ACS grade) solvents like petroleum ether (40–60 °C), toluene, chloroform, ethyl acetate, methanol, ethanol and analytical TLC aluminium plates were purchased from Merck Millipore, Burlington, Massachusetts, USA. The different analytical grade (AR) chemicals like sodium bicarbonate, HEPES buffer, D-glucose, D-sorbitol, formic acid, phosphate buffer solution 10X (PBS), Giemsa stain, sodium pyruvate, dimethyl sulfoxide (DMSO) and plastic wares used in the biological activity screening were purchased from HiMedia Pvt. Ltd., Mumbai, India. Molecular biology grade Fetal bovine serum (FBS), gentamycin, amphotericin-B, penicillin, streptomycin, 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT), RPMI-1640 (Roswell Park Memorial Institute-1640), DMEM (Dulbecco’s Modified Eagle’s medium) were purchased from Gibco-BRL, Life Technologies Inc., Gaithersburg, MD 20884–9980, USA and Sigma Aldrich, St. Louis, MO, USA. The marker compound and standard drug, namely, quercetin (HPLC grade ≥ 95%) and chloroquine phosphate (Certified Reference Material grade) were purchased from Sigma-Aldrich, St. Louis, MO, USA.

Plant materials

The information regarding the use of different plants as herbal remedies for the treatment of fever associated with malaria was collected by interviewing local practitioners in the form of questionnaires and from local books.

Herbariums of the two selected plants (Voucher specimen no. DU/DRS/HRB/NG/2018–19/FS-01 and DU/DRS/HRB/NG/2018–19/FS-05) were prepared according to standard procedure and sent to Botanical Survey of India, Shillong for identification and authentication. Then the plant parts used in the preparation the traditional herbal remedy were collected and processed according to the guideline of Good Agricultural and Collection Practice of WHO [30]. The processed plant materials were coarsely powdered with a mechanical grinder and stored in airtight containers.

Extraction of the plant materials

The extraction of the powdered plant materials was carried out using cold maceration technique using petroleum ether (40–60 °C), chloroform, ethyl acetate, methanol and hydro-alcoholic (1:1) solvent system. Besides, one sample from each plant were prepared as per the traditional practices. In the cold maceration, about 500 g plant material was taken with 3 l of solvent and kept for 72 h with occasional shaking [31]. After that, the solvents were removed under reduced pressure at low temperature using a rotary evaporator (IKA Rotary Evaporator RV 8 V). In the case of the hydro-alcoholic extract, the water part was removed by lyophilisation of the sample using laboratory freeze dryer (IIC Industrial Corporation). The extracts were preserved in glass sample bottles and kept in − 20 °C for further use. The extracts were prepared at ratio of 1:6 during cold maceration process. The yields of the extracts of C. maxima were found to be 0.262%, 0.562%, 2.882%, 1.151%, 8.305% and 0.167% w/w with petroleum ether (40–60 °C), chloroform, ethyl acetate, methanol, hydro-alcoholic and traditional solvent system respectively. Similarly, in case of A. nilagirica, the yields of the extracts were found to be 0.757%, 1.627%, 1.891%, 2.062%, 1.770% and 0.215% w/w with petroleum ether (40–60 °C), chloroform, ethyl acetate, methanol, hydro-alcoholic and traditional solvent system respectively.

In vitro antimalarial screening of the extracts

Preparation of standard and test samples

For this study, 1 mg/ml stock solutions of the extracts were prepared by using incomplete RPMI-1640 media containing 0.5% DMSO. Chloroquine phosphate was used as standard drug in this study and prepared 100 μg/ml stock using the same protocol as used for extracts for further use.

In vitro culture of malaria parasites

The chloroquine sensitive (3D7) and chloroquine resistant (RKL-9) strains of the malaria parasite P. falciparum were obtained from the Parasite Bank of National Institute of Malaria Research (Indian Council of Medical Research), New Delhi. The strains of P. falciparum were maintained in fresh A+ erythrocytes suspended in RPMI-1640 medium supplemented with 25 mM HEPES, 1% D-glucose, 0.23% sodium bicarbonate, gentamycin (40 mg/ml), amphotericin-B (0.25 mg/ml) and 10% heat-inactivated AB+ serum at 37 °C and 5% CO₂ environment [32, 33]. After every 24 h, the used medium was replaced with fresh medium supplemented with 10% heat-inactivated AB+ serum and the parasitemia level was maintained below 2%.

Antimalarial activity screening & determination of IC₅₀ values

The antimalarial screening of the extracts was carried out against both 3D7 and RKL-9 strain of P. falciparum by Giemsa staining light microscopy method. For antimalarial testing, initially the asynchronous P. falciparum parasites were synchronized to obtain only the ring stage parasitized cells by treating with 5% D-sorbitol [34]. The initial ring stage parasitemia was maintained at 0.5% in 4% haematocrit using complete medium and fresh A+ erythrocytes before using in the screening. For screening, test and standard drugs were taken in nine different concentrations by two fold serial dilutions for both the 3D7 and RKL-9 strains in 96 well plates. The concentration ranges for test drug and standard drug were 50 to 0.19 μg/ml and 5 to 0.019 μg/ml respectively. All the treatments were performed in triplicates. Then parasitized blood was added to the wells of 96-well plate containing 100 μl of test and standard samples to carry out the assay. The plates were incubated at 37 °C in an environment of 5% CO₂ for 36–40 h in a CO₂ incubator. After the incubation period, blood smears were prepared in glass slide from each well and fixed by treating with methanol. The slides were stained with 10% Giemsa stain prepared in 1% phosphate buffer solution (PBS). After that number of schizonts (3 or more merozoites containing) per 100 asexual parasites were counted under a light microscope (Leica DM1000) at 1000X (oil emersion) magnification [35]. The percentage inhibition for each concentration was calculated by the following equation:

$$ \% Inhibition=1-\frac{no. of\ schizonts\ in\ test}{no. of\ schizonts\ in\ negative\ control}\times 100 $$

Finally, the IC₅₀ values were calculated by plotting nonlinear regression curve between log dose vs percentage (%) inhibition using GraphPad Prism (GraphPad Prism v.7 San Diego, California, USA). Based on the obtained IC₅₀ values, the extracts were categorized in to active (< 10 μg/ml), intermediate (10–25 μg/ml) or inactive (> 25 μg/ml) categories [36].

In vitro cytotoxicity study

The most active extract obtained for each plant from the in vitro antimalarial study were further taken for in vitro cytotoxicity study using MTT assay [37]. The study was carried out against normal murine macrophage RAW264.7 cell line. Approximately, 1 × 10⁴ cells/ml were cultured in DMEM (Dulbecco’s Modified Eagle’s medium) media supplemented with 2 mM L-glutamine, 1 mM sodium pyruvate, 10% FBS (Fetal Bovine Serum), penicillin (100 units/ml), streptomycin (10 μg/ml) and allowed to incubate at 37 °C in a humidified 5% CO₂ environment. After 80% cell confluency, the cells were treated with different concentrations (50, 100, 200 and 500 μg/ml) of the selected test extracts and incubated for 24 h. Cells without any treatment were considered as control. After 24 h incubation, 0.5 mg/ml MTT was added to each well of the plates and incubated for a further 5 h. After the completion of the incubation, formed formazone complexes were dissolved properly in MTT solvent and the absorbance was taken at 570 nm using a microplate reader (Multiskan™ FC Microplate Photometer). The experiment was performed in triplicates and the percentage of cell viability was calculated for each concentration and compared to control cells without any treatment. Finally, CC₅₀ (cytotoxic concentration) were determined for the test extracts.

Phytochemical and qualitative fingerprint analysis

The various biological activities shown by plant extracts are mainly due to the presence of the different secondary metabolites like alkaloids, flavonoids, glycosides, terpenoids, saponins, steroids, tannins etc. [38]. The active extract from each plant was analysed by chemical reagents to detect the presence of those secondary metabolites using standard procedures as described in the earlier study [39].

The qualitative fingerprint analysis of an extract under the controlled environment is one of the quality control parameters for herbal products [40, 41]. In this study, the qualitative fingerprints of the active extracts were developed using HPTLC densitometry analysis under control environment of temperature and humidity. The study was carried out by using Camag TLC Scanner 4, semiautomatic sample spotter Linomat 5, UV visualization cabinet (deuterium, tungsten and mercury lamp), 100 μl Hamilton dosage syringe, TLC aluminium plate pre-coated with silica gel 60 F₂₅₄ (10 cm × 10 cm) and glass twin trough chamber (10 cm × 10 cm).

Initially, stock solutions of the marker compound (quercetin for A. nilagirica)/semi-purified fraction for C. maxima (1 mg/ml) and active extracts (10 mg/ml) were prepared in their respective solvents by sonicating for 15 min. Then the samples were centrifuged at 2000 rpm for 5 min and the supernatants were transferred to the sample vials by filtration for further use.

The experiment was carried out at a temperature of 25 ± 2 °C, relative humidity 55%. In the TLC plate (10 cm × 10 cm), 2 μL of the marker compound or semi-purified fraction in duplicate and 4 μL of the active extracts in quadruplicate were applied as a band of 8 mm × 1 mm in size at a distance of 8 mm from the bottom. After applying the sample, the plates were developed using 10 ml mobile phase composed of toluene: ethyl acetate: methanol: formic acid at a ratio of 3:5:1:0.5 using the glass twin trough chamber (10 cm × 10 cm). The plates were developed up to a distance of 7 cm and air-dried at room temperature. Then plates were visualized under UV cabinet at 254 nm and 366 nm. After that, the plates were scanned at 254 nm in absorbance mode and at 366 nm in fluorescence mode using the Camag TLC scanner 4 linked with VisionCAT 2.5 software. During scanning, the slit dimension was kept at 5 × 0.2 mm and the scanning speed was employed at 20 mm/s [42].

Results

Identification and small scale extraction of plant materials

The plants used in the preparation of herbarium were identified as Citrus maxima (Burm.) Merr. (F: Rutaceae) and Artemisia nilagirca (C.B. Clarke) Pamp. (F: Asteraceae) by Dr. N. Odyuo, Scientist D, Botanical Survey of India, Shillong (Ref no. BSI/ERC/Tech/2019/481 dated 23.09.2019). After completing the extraction process, the highest yield was obtained in hydro-alcoholic solvent system for C. maxima whereas highest yield was obtained in methanol solvent for A. nilagirica.

In vitro antimalarial activity

The slides prepared from each well were observed under the light microscope and the number of infected erythrocytes were counted within a particular area. From the infected erythrocytes, the number of parasites with schizont stage were calculated and used for determination of % inhibition. The in vitro antimalarial activity of the extracts was determined in the form of IC₅₀ values using non-linear regression analysis against both 3D7 and RKL-9 strains, and compared with the standard drug chloroquine phosphate (Table 1 & Fig. 1). The representative photomicrographs of smear observed under the microscope during counting are shown in Fig. 2. From the results, it was observed that in the case of C. maxima the hydro-alcoholic extract (CM-HA) showed the lowest IC₅₀ values 3.41 ± 0.31 μg/ml and 4.45 ± 0.10 μg/ml against 3D7 and RKL-9 strains respectively. In the case of A. nilagirica, methanol extract (AN-ME) showed the lowest IC₅₀ values 3.28 ± 0.08 μg/ml and 3.81 ± 0.34 μg/ml against 3D7 and RKL-9 stains respectively.

Table 1 IC₅₀ values of the plant extracts against 3D7 and RKL-9 strains of P. falciparum

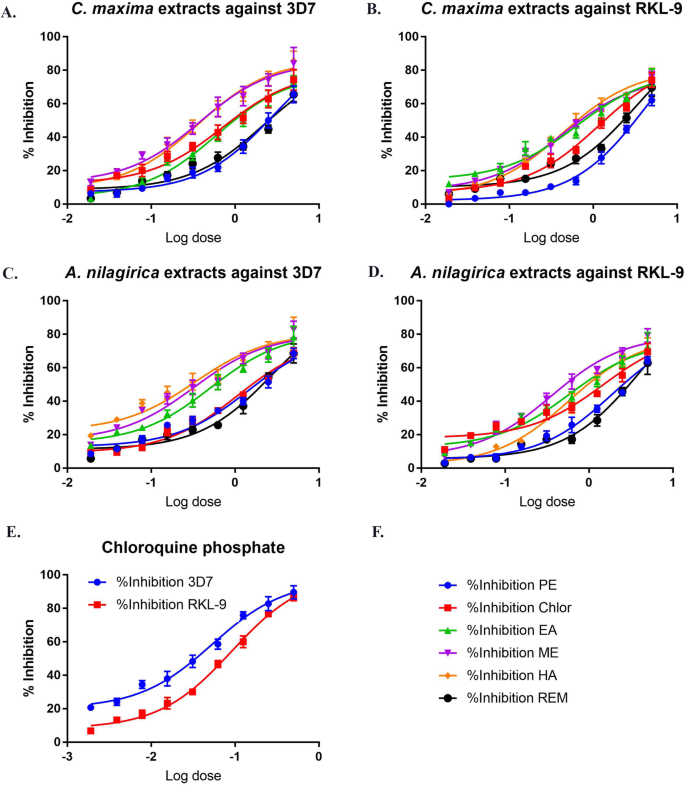

Fig. 1

Calculation of IC₅₀ values by non-linear regression analysis (GraphPad Prism) using nine different concentrations with two-fold serial dilution. For the test extracts the dilution was made from 50 μg/ml to 0.195 μg/ml whereas for the standard drug the dilution was made from 5 μg/ml to 0.019 μg/ml. The experiment was performed in triplicates and each value is the mean ± SD of three replicates

Fig. 2

Representative photomicrographs taken during the observation under light microscope at 1000X (oil emersion) magnification showing infected erythrocytes by different strains of P. falciparum; a. 3D7 without treatment, b. 3D7 with treatment (50 μg/ml), c. RKL-9 without treatment and d. RKL-9 with treatment (50 μg/ml)

In vitro cytotoxicity study

The active extract(s) selected from the antimalarial screening were further analysed for cytotoxicity potential by MTT assay. The methanol extract of A. nilagirica (AN-ME) and hydro-alcoholic extract of C. maxima (CM-HA) were screened against normal murine macrophage RAW264.7 cell line where % viability for the methanol extract of A. nilagirica was found to be more than 90% at the maximum dose 500 μg/ml (Fig. 3). On the other hand, the % viability for the hydro-alcoholic extract of C. maxima was found to be less than 50% at the maximum dose of 500 μg/ml (Fig. 3). Later CC₅₀ values for both the extracts were determined and found to be more than 100 μg/ml for both the extracts (Fig. 3).

Fig. 3

Cytotoxic effects of the active extracts of C. maxima and A. nilagirica on murine macrophage RAW264.7 cell line; a Cell viability after treatment of 24 h with the different dose of the extracts. b Determination of CC₅₀ values of the two extracts (CM-HA and AN-ME). The experiment was performed in triplicates and each value is the mean ± SD of three replicates

Phytochemical & fingerprint analysis

The bioactive potential shown by a plant extract is due to the presence of different plant secondary metabolites in the sample. From the preliminary chemical tests, alkaloids, flavonoids and glycosides were found to be present in the CM-HA extract whereas, alkaloids, flavonoids, tannins and terpenoids were found to be present in the AN-ME extract (Table S1).

The qualitative fingerprint analysis of extract is a standardization process of plant material or plant extract in the absence of known marker or standard compound. The fingerprints of the active extracts were developed under control environmental conditions like temperature and humidity, and found the presence of various types of compounds in the extracts (Figs. 4 and 5). The chromatograms developed after scanning under 254 nm (absorbance mode) and 366 nm (fluorescence mode) for each extract revealed the presence of multiple components (based on number of peaks) and their possible quantity (based on the area of the peaks) (Fig. S1 & S2).

Fig. 4

Visualization of the TLC plates under UV visualizer at 254 nm and 366 nm to detect the presence of different plant secondary metabolites of Citrus maxima (Burm.) Merr

Fig. 5

Visualization of the TLC plates under UV visualizer at 254 nm and 366 nm to detect the presence of different plant secondary metabolites of Artemisia nilagirica (C.B. Clarke) Pamp

Discussion

The discovery of new antimalarial lead molecule(s) or the development to of antimalarial phytopharmaceutical product(s) from traditionally used plant materials/parts has gained significant importance [43]. For that purpose, the preliminary in vitro antimalarial screening of the plant materials/parts is very essential along with their toxicity assessment against normal mammalian/human cell. Therefore, this study aimed to evaluate the antimalarial potential of the different extracts of the two selected traditionally used plants as well as cytotoxic effect of the active extracts in in vitro conditions. All the extracts obtained from the two plants (C. maxima and A. nilagirica) showed the antimalarial activity within different ranges in the form of IC₅₀ values in in vitro antimalarial analysis. From the results, we found that the ethyl acetate, methanol and hydro-alcoholic extracts came under active category (< 10 μg/ml) against both 3D7 and RKL-9 strains of P. falciparum. The chloroform extract of C. maxima also came under the active category only against the 3D7 strain of P. falciparum. However, among the active extracts, in the case of C. maxima, the hydro-alcoholic extract showed the best activity with IC₅₀ values 3.41 ± 0.31 μg/ml and 4.45 ± 0.10 μg/ml against 3D7 and RKL-9 respectively (Table 1). Whereas in the case of A. nilagirica, the methanol extract showed the best activity with IC₅₀ values 3.28 ± 0.08 μg/ml (3D7) and 3.81 ± 0.34 μg/ml against 3D7 and RKL-9 respectively (Table 1). These two extracts may contain the phytoconstituents which are responsible for strong antimalarial activity against P. falciparum strains. The antimalarial activity of the root part of C. maxima is not reported till date. But the antimalarial activity of the leaves of A. nilagirica was reported by Panda et al. against a different strain of P. falciparum where methanol extract was found to be the most active [29]. The preliminary phytochemical screening of the extracts revealed the presence of some important class of plant secondary metabolites like alkaloids, flavonoids and terpenoids. Pan et al., 2018 already reported the antimalarial activity of secondary metabolites like alkaloids, flavonoids and terpenoids [44]. Hence, the potential in vitro antimalarial activity showed by the active extracts (CM-HA and AN-ME) against the two P. falciparum strains may be due to the presence of these important classes of secondary metabolites. Although the IC₅₀ values of these two extracts were not near to the IC₅₀ values of the standard drug chloroquine phosphate (IC₅₀ values 0.54 ± 0.02 μg/ml and 0.88 ± 0.04 μg/ml against 3D7 and RKL-9 respectively), at extract level the results were satisfactory and can be taken for further study [45]. In the case of both the plants, the samples prepared in the traditional way were found to be either in the intermediate or inactive category. But as they were showing some extent of inhibition in the growth of the parasites hence the traditional way of using these plant parts give some benefits to the patients. The activity of the other extracts also suggests the positive impacts of these plants on the treatment of malaria.

The two active extracts were further examined for their cytotoxicity potential against normal cell line (murine macrophage RAW264.7 cell line) where the methanol extract of A. nilagirica (AN-ME) was found to be safe even at a dose of 500 μg/ml with > 90% cell viability (Fig. 3). But the hydro-alcoholic extract of C. maxima (CM-HA) was found to be toxic at the maximum dose of 500 μg/ml with < 50% cell viability (Fig. 3). After that, the CC₅₀ values of the extracts were determined where the CC₅₀ value of the CM-HA was found to be 817.3 ± 2.4 μg/ml whereas the CC₅₀ value of the AN-ME was found to be > 1000 μg/ml. Overall both the extracts (CM-HA and AN-ME) were found to be more selective towards P. falciparum than normal cells. Besides extracts or compounds with CC₅₀ > 90 μg/ml against normal cell line are considered to be safe and can be taken for further study [46], hence the two test extracts can be utilized for further preclinical studies.

The preliminary phytochemical and fingerprint analysis provide an idea regarding the presence of different plant metabolites in the selected extract [47]. As from the analysis, no known markers were found for both the extracts, the qualitative fingerprints were developed in a controlled environment of temperature and humidity using a suitable mobile phase. The photographs as well the chromatograms developed during the study gave an idea that the CM-HA contained diverse groups of compounds with absorbance and fluorescence characteristics (Fig. 4). The intensities of the bands also indicate the presence of significant amounts of few compounds in the extract. Similarly, the photographs and chromatograms of AN-ME also showed the presence of diverse groups of compounds but the intensity of the bands indicated the presence of those compounds in less quantity (Fig. 5). These two final extracts (CM-HA and AN-ME) were found to be highly active (< 5 μg/ml) with the presence of various important secondary metabolites. These active extracts can deliver new/novel lead compound(s) with antimalarial activity as well as can be further utilized for the development of phytopharmaceutical products by fulfilling the criteria of regulatory body like CDSCO (Central Drugs Standard Control Organisation) for global acceptance.

Conclusion

In this study, we investigated the antimalarial activity of different extracts of two traditionally used medicinal plants C. maxima and A. nilagirica against both chloroquine sensitive (3D7) and chloroquine resistant (RKL-9) strains of P. falciparum. From the results obtained from in vitro experiments, it was observed that hydro-alcoholic extract of C. maxima and methanolic extracts of A. nilagirica showed the potent activity against the strains of P. falciparum without having any toxic effect. The findings of the study will help in identification of active antimalarial lead molecule(s) from the active extracts to develop safe and potent antimalarial drug(s) or phytopharmaceutical(s) by following proper standardization techniques as per the regulatory guidelines.
